Part number:
KRA103
Manufacturer:
KEC
File Size:
63.42 KB
Description:
Epitaxial planar pnp transistor.

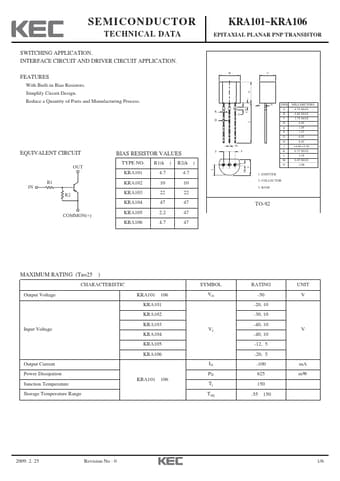

* With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. EQUIVALENT CIRCUIT OUT R1 IN R2 COMMON(+) BIAS RESISTOR VALUES TYPE NO. R1(k ) R2(k ) KRA101 4.7 4.7 KRA102 10 10 KRA103 22 22 KRA104 47 47 KRA105 2.2 47 KRA106 4.7 47 L M
KRA103
KEC
63.42 KB
Epitaxial planar pnp transistor.
