KRA101S - PNP Transistors

KRA101S Description

SMD Type PNP Transistors KRA101S ~ KRA106S Transistors * .

KRA101S Features

* With Built-in Bias Resistors.
* Simplify Circuit Design.
* Reduce a Quantity of Parts and Manufacturing Process. +0.12.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 12 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.11.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.10.97 -0.1 BIAS RESISTOR VALUES

📥 Download Datasheet

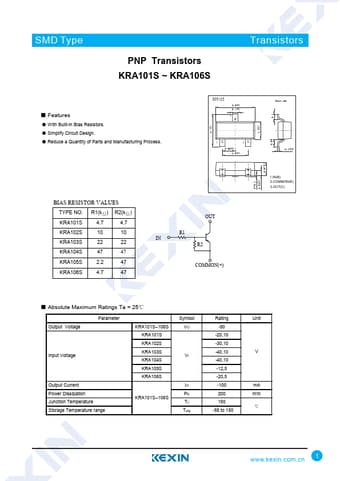

Preview of KRA101S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KRA101S
Manufacturer
Kexin
File Size
1.18 MB
Datasheet
KRA101S-Kexin.pdf
Description
PNP Transistors
