Part number:
KTA1705
Manufacturer:
KEC
File Size:
697.02 KB
Description:
Epitaxial planar pnp transistor.

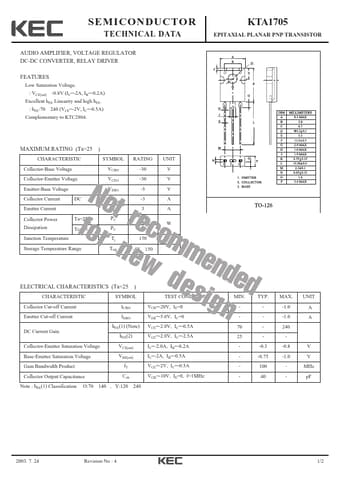

* Low Saturation Voltage. : VCE(sat) -0.8V (IC=-2A, IB=-0.2A) Excellent hFE Linearity and high hFE. : hFE:70 240 (VCE=-2V, IC=-0.5A) Complementary to KTC2804. KTA1705 EPITAXIAL PLANAR PNP TRANSISTOR MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage VC
KTA1705
KEC
697.02 KB
Epitaxial planar pnp transistor.
