KTC3206 - EPITAXIAL PLANAR NPN TRANSISTOR

KTC3206 Description

SEMICONDUCTOR TECHNICAL DATA BLACK AND WHITE TV VIDEO OUTPUT APLICATION.HIGH VOLTAGE SWITCHING APPLICATION..

KTC3206 Features

* High Breakdown Voltage : VCEO=150V(Min. ). Low Output Capacitance : Cob=5.0pF(Max. ). High Transition Frequency : fT=120MHz(Typ. ). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Base Current Coll

📥 Download Datasheet

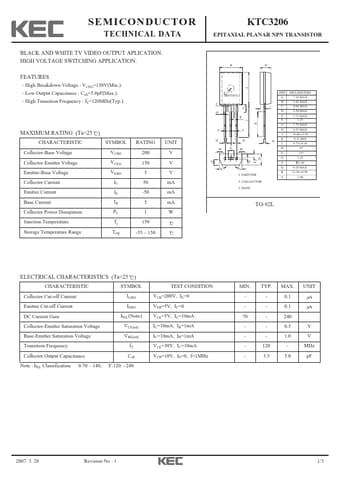

Preview of KTC3206 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTC3206
Manufacturer
KEC
File Size
802.23 KB
Datasheet
KTC3206-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
