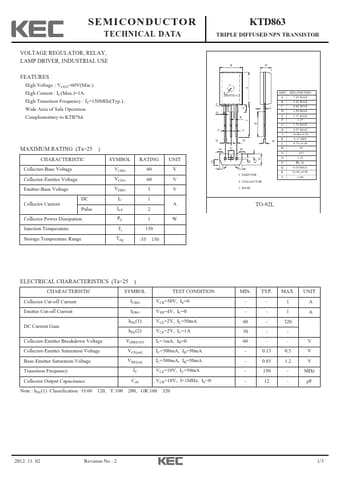

KTD863 Datasheet, Transistor, KEC

KTD863 Features

• Transistor High Voltage : VCEO=60V(Min.). High Current : IC(Max.)=1A. High Transition Frequency : fT=150MHz(Typ.). Wide Area of Safe Operation. Complementary to KTB764. MAXIMUM RATING (Ta=25 ) C

PDF File Details

Part number:

KTD863

Manufacturer:

KEC

File Size:

357.06kb

Download:

📄 Datasheet

Description:

Triple diffused npn transistor.
