HV733A, HV73, flat chip resistors

resistors HV73 flat chip resistors for high voltage EU .

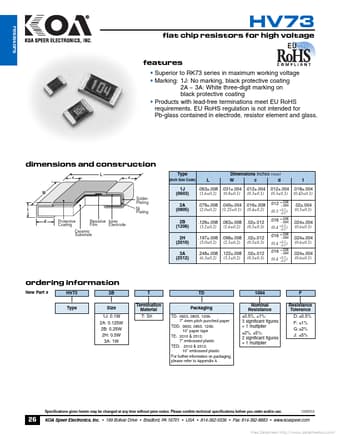

datasheet Preview Page 1 from Datasheet4u.com

HV73_KOA.pdf

HV733A Datasheet Preview — This datasheet PDF includes multiple part numbers: HV733A, HV73. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HV733A, HV73

Manufacturer:

KOA

File Size:

250.62 KB

Description:

flat chip resistors

Note:

This datasheet PDF includes multiple part numbers: HV733A, HV73.
Please refer to the document for exact specifications by model.

Features

* Superior to RK73 series in maximum working voltage
* Marking: 1J: No marking, black protective coating 2A ~ 3A: White three-digit marking on black protective coating
* Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-

Applications

* and ratings Part Designation Power Rating @ 70°C T. C. R. (ppm/°C) Max. E-24 (D±0.5%) Resistance Range (Ω) E-24 (F±1%) E-24 (G±2%) E-24 (J±5%) Absolute Maximum Working Voltage Maximum Overload Voltage (D. C. )
* Operating Temperature Range 1J 0.1W ±100
* 10k - 10M 10k
