HV7331

Ultrasound RTZ Pulser

Supertex

HV7331 Features

* HVCMOS technology for high performance

* High density integrated ultrasound transmitter

* 0 to ±70V output voltage

* ±2.0A source and sink minimum pulse current

* Up to 20MHz operation frequency

* ±2.5ns matched delay times

* 2.5 to 5.

HV7331 General Description

The Supertex HV7331 is a four-channel, monolithic, high voltage, high speed pulse generator with built in fast return to zero damping FETs. This high voltage and high-speed integrated circuit is designed for portable medical ultrasound imaging devices, and can also be used for NDT applications. The .

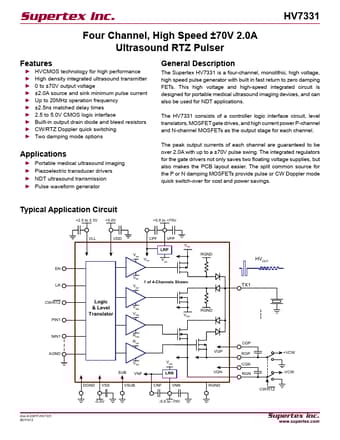

HV7331 Datasheet (399.33 KB)

HV7331 Datasheet Preview — Preview of HV7331 PDF

Datasheet Details

Part number:

HV7331

Manufacturer:

Supertex

File Size:

399.33 KB

Description:

Ultrasound rtz pulser.
