K101 - Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)

K101 Description

Photocoupler K101 * K102 * K104 These Photocouplers consist of a Gallium Arsenide Infrared Emitting Diode and a Silicon NPN Phototran.

K101 Features

* Mini-Flat Package
* Collector-Emitter Voltage : Min.50V
* Current Transfer Ratio : Min.50% (at IF=5mA, VCE=5V)

K101 Applications

* Interface between two circuits of different potential
* Cordless Phone
* Programmable Logic Control
* Microcomputer DIMENSION K101 4 0.2 3 (Unit : mm) K102 8 0.2 7 6 5 4.4 1 Orientation Mark 7.0 3.6 0.2 0.2 0.5 2 Orientation Mark 4.4 1 2 3 4 7.0 0.05 8.7

📥 Download Datasheet

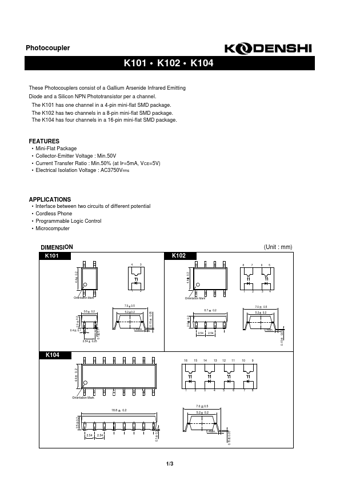

Preview of K101 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
K101
Manufacturer
KODENSHI KOREA CORP
File Size
257.23 KB
Datasheet
K101_KodenshiCorp.pdf
Description
Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting)
