K10103W - LOW INPUT CURRENT PHOTOCOUPLER

Product Overview

Cosmo

📥 Download Datasheet

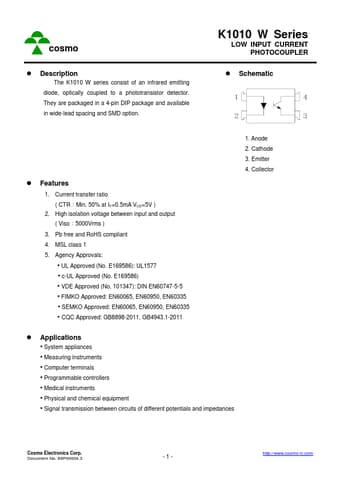

K10103W LOW INPUT CURRENT PHOTOCOUPLER by Cosmo - Datasheet Preview — Datasheet preview – K10103W

Datasheet Details

Part number	K10103W
Manufacturer	Cosmo
File Size	214.65 KB
Description	LOW INPUT CURRENT PHOTOCOUPLER
Datasheet	K10103W Datasheet
Note	This datasheet PDF includes multiple part numbers: K10103W, K1010W. Please refer to the document for exact specifications by model.
Additional preview pages of the K10103W datasheet.

Product details

Description

The K1010 W series consist of an infrared emitting diode, optically coupled to a phototransistor detector.

Features

1. Current transfer ratio ( CTR：Min. 50% at IF=0.5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 101347): DIN EN60747-5-5.
FIMKO Approved: EN60065, EN60950, EN60335.
SEMKO Approved: EN60065, EN60950, EN60335.
CQC Approved: GB8898-2011, GB4943.1-2011 1. Anode 2.
