K1010MA600 Medium Voltage Thyristor

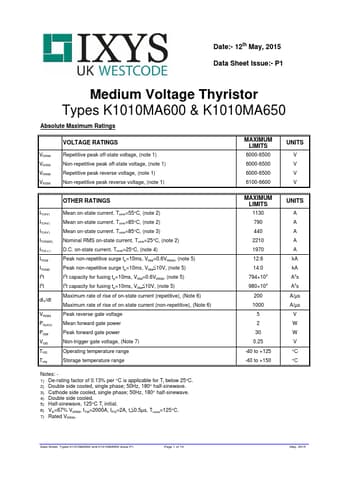

Date:- 12th May, 2015 Data Sheet Issue:- P1 Medium Voltage Thyristor Types K1010MA600 & K1010MA650 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 6000-6500 6000-6500 6000-6500 6100-6600 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t diT/dt VRGM PG(AV) PGM VGD .
