K1010MA650, K1010MA600 Datasheet - IXYS

K1010MA650 Medium Voltage Thyristor

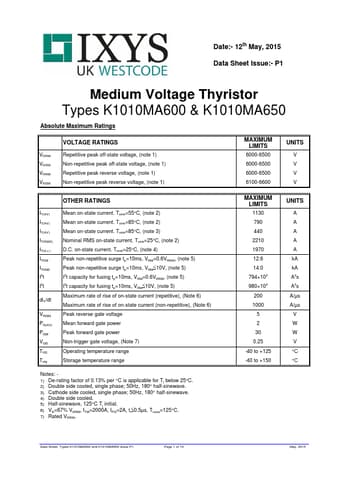

Date:- 12th May, 2015 Data Sheet Issue:- P1 Medium Voltage Thyristor Types K1010MA600 & K1010MA650 Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage, (note 1) Non-repetitive peak reverse voltage, (note 1) MAXIMUM LIMITS 6000-6500 6000-6500 6000-6500 6100-6600 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t diT/dt VRGM PG(AV) PGM VGD .

K1010MA600-IXYS.pdf

This datasheet PDF includes multiple part numbers: K1010MA650, K1010MA600. Please refer to the document for exact specifications by model.
K1010MA650 Datasheet Preview Page 2 K1010MA650 Datasheet Preview Page 3

Datasheet Details

Part number:

K1010MA650, K1010MA600

Manufacturer:

IXYS

File Size:

267.67 KB

Description:

Medium voltage thyristor.

Note:

This datasheet PDF includes multiple part numbers: K1010MA650, K1010MA600.
Please refer to the document for exact specifications by model.
