K10103T, K1010T, LOW INPUT CURRENT PHOTOCOUPLER

cosmo z .
The K1010 T series consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

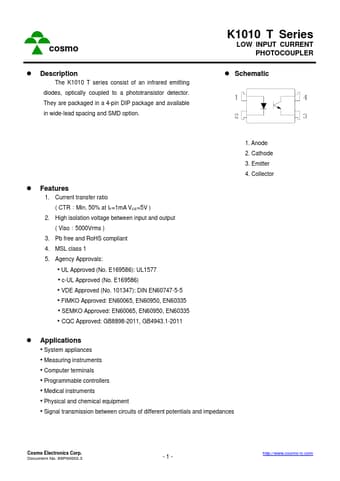

datasheet Preview Page 1 from Datasheet4u.com

K1010T-Cosmo.pdf

K10103T Datasheet Preview — This datasheet PDF includes multiple part numbers: K10103T, K1010T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

K10103T, K1010T

Manufacturer:

Cosmo

File Size:

214.16 KB

Description:

LOW INPUT CURRENT PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: K10103T, K1010T.
Please refer to the document for exact specifications by model.

Features

* 1. Current transfer ratio ( CTR：Min. 50% at IF=1mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals:
* UL Approved (No. E169586): UL1577
* c-UL Approved (No. E169586)
* VDE Approved

Applications

* System appliances
* Measuring instruments
* Computer terminals
* Programmable controllers
* Medical instruments
* Physical and chemical equipment
* Signal transmission between cir
