K10103Z Datasheet, Photocoupler, Cosmo

K10103Z Features

• Photocoupler 1. Current transfer ratio ( CTR：Min. 50% at IF=0.1mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency

PDF File Details

Part number:

K10103Z

Manufacturer:

Cosmo

File Size:

214.40kb

Download:

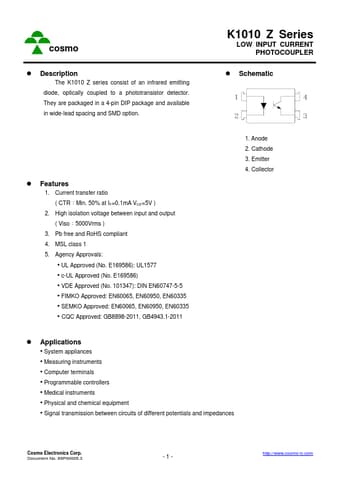

📄 Datasheet

Description:

Low input current photocoupler. The K1010 Z series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 4-p

K10103Z Application

• Applications
• System appliances
• Measuring instruments
• Computer terminals
• Programmable controllers
• M
