K10103X - 4PIN PHOTOTRANSISTOR PHOTOCOUPLER

Product Overview

Cosmo

📥 Download Datasheet

K10103X 4PIN PHOTOTRANSISTOR PHOTOCOUPLER by Cosmo - Datasheet Preview — Datasheet preview – K10103X

Datasheet Details

Part number	K10103X
Manufacturer	Cosmo
File Size	324.99 KB
Description	4PIN PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	K10103X Datasheet
Note	This datasheet PDF includes multiple part numbers: K10103X, K1010. Please refer to the document for exact specifications by model.

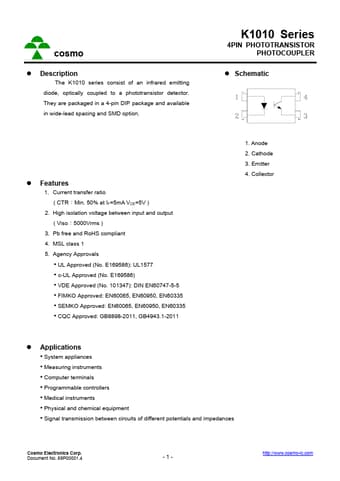

Additional preview pages of the K10103X datasheet.

Product details

Description

The K1010 series consist of an infrared emitting diode, optically coupled to a phototransistor detector. Schematic 1. Anode 2. Cathode 3. Emitter 4. Collector

Features

es 1. Current transfer ratio ( CTR：Min. 50% at IF=5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Agency Approvals.
UL1577 / CUL C22.2 No.1 & NTC No.5, File No. E169586.
VDE EN60747, File No.101347.
FIMKO EN60065, File No. NCS/FI23149 A2.
FIMKO EN60950, File No. NCS/FI24584 A1.
SEMKO EN60065, File No. FI016484.
SEMKO EN60950, File No. FI016433.
CQC GB4943/GB8898-2011.
