KSM-904LM Optic receiver module

1) Transmitter(IRED) drive current : IFP = 300mAP-P ~ 600mAP-P 2) R-C Decoupling Filter with Lower Cut-off Frequency : R=100 *Ù , C=47 *Þ : 10 *Ú over ¢¡ fc = 1/2 *ð RC = 33.9Hz 3) External pull-up resistor(optional) Vcc C Rp micom GND 2/2 .

KSM-904LM Features

* Wide angle design Supply-voltage range : 4.5V to 5.5V Shielded against electrical field disturbance Enhanced immunity against ambient light disturbances Available for carrier frequencies between 32.7KHz to 56.9KHz TTL and CMOS compatible Applications Audio & Video Applications (TV, VTR, Audio, DVDP

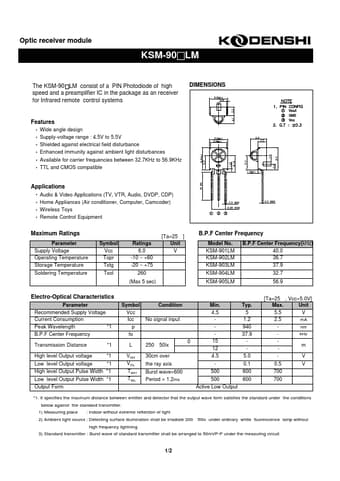

KSM-904LM Datasheet (182.73 KB)
