KK4006B Datasheet - KODENSHI KOREA

KK4006B CMOS 18-Stage Static Shift Register

Input Data Output Data Clock Data Input Data Input Data Input Data Ground Output Data Output Data Output Data Output Data Output Data Output Data Positive Pover Supply VDD X = don’t care 1 www.DataSheet4U.com KK4006B MAXIMUM RATINGS * Symbol VDD VIN IIN PD Ptot Tstg TL * Parameter DC S.

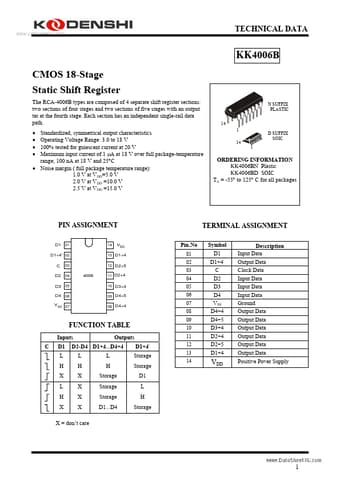

www.DataSheet4U.com TECHNICAL DATA KK4006B СMOS 18-Stage Static Shift Register The RCA-4006B types are composed of 4 separate shift register sections: two sections of four stages and two sections of five stages with an output tar at the fourth stage. Each section has an independent single-rail data path. Standardized, symmetriсal output characteristics Operating Voltage Range: 3.0 to 18 V 100% tested for guiescent current at 20 V Maximum input current of.
