KK4020B 14 Stage Ripple-Carry Binary Counter/Divider High-Voltage Silicon-Gate CMOS

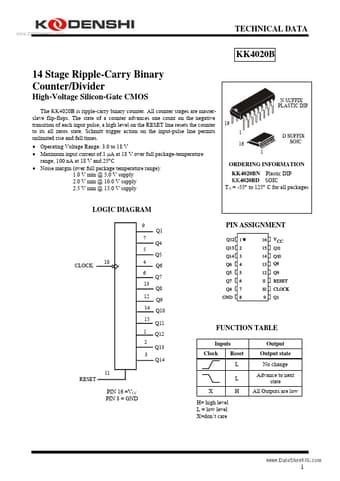

www.DataSheet4U.com TECHNICAL DATA KK4020B 14 Stage Ripple-Carry Binary Counter/Divider High-Voltage Silicon-Gate CMOS The KK4020B is ripple-carry binary counter. All counter stages are masterslave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. Operating Voltage Range: 3..
