KK4024B 7 Stage Ripple-Carry Binary Counter/Divider High-Voltage Silicon-Gate CMOS

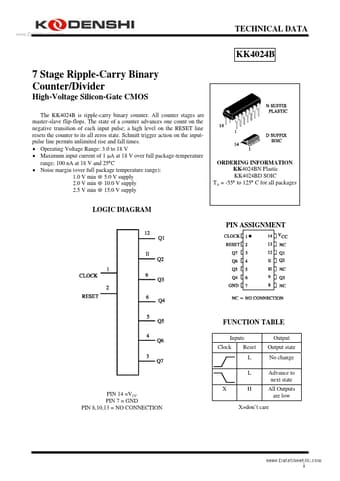

www.DataSheet4U.com TECHNICAL DATA KK4024B 7 Stage Ripple-Carry Binary Counter/Divider High-Voltage Silicon-Gate CMOS The KK4024B is ripple-carry binary counter. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the inputpulse line permits unlimited rise and fall times. Operating Voltage Range: 3.0.

KK4024B_KODENSHIKOREA.pdf

Preview of KK4024B PDF
KK4024B Datasheet Preview Page 2 KK4024B Datasheet Preview Page 3

Datasheet Details

Part number:

KK4024B

Manufacturer:

KODENSHI KOREA

File Size:

514.73 KB

Description:

7 stage ripple-carry binary counter/divider high-voltage silicon-gate cmos.
