KK4025B Triple 3-Input NOR Gate High-Voltage Silicon-Gate CMOS

www.DataSheet4U.com TECHNICAL DATA KK4025B Triple 3-Input NOR Gate High-Voltage Silicon-Gate CMOS The KK4025B NOR gates provide the system designer with direct emplementation of the NOR function. Operating Voltage Range: 3.0 to 18 V Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDER.

KK4025B_KODENSHIKOREA.pdf

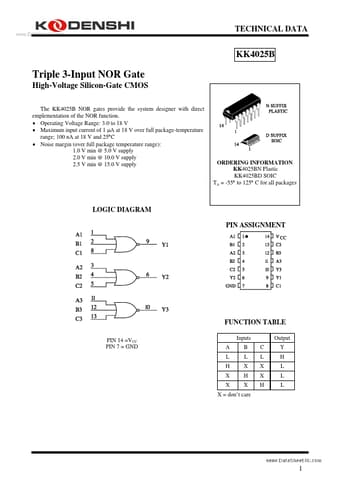

KK4025B Datasheet Preview — Preview of KK4025B PDF

Datasheet Details

Part number:

KK4025B

Manufacturer:

KODENSHI KOREA

File Size:

209.49 KB

Description:

Triple 3-input nor gate high-voltage silicon-gate cmos.
