KK74HC112A Datasheet - KODENSHI KOREA

KK74HC112A Dual J-K Flip-Flop

TECHNICAL DATA KK74HC112A Dual J-K Flip-Flop with Set and Reset High-Performance Silicon-Gate CMOS The KK74HC112A is identical in pinout to the LS/ALS112. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. Each flip-flop is negative-edge clocked and has active-low asynchronous Set and Reset inputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low.

KK74HC112A_KODENSHIKOREA.pdf

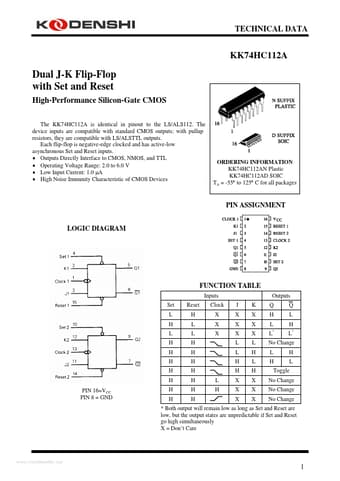

Preview of KK74HC112A PDF
KK74HC112A Datasheet Preview Page 2 KK74HC112A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HC112A

Manufacturer:

KODENSHI KOREA

File Size:

403.32 KB

Description:

Dual j-k flip-flop.
