KK74HC11A Datasheet - KODENSHI KOREA

KK74HC11A Triple 3-Input AND Gate

TECHNICAL DATA KK74HC11A Triple 3-Input AND Gate High-Performance Silicon-Gate CMOS The KK74HC11A is identical in pinout to the LS/ALS11. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs. Outputs Directly Interface to CMOS, NMOS, and TTL Operating Voltage Range: 2.0 to 6.0 V Low Input Current: 1.0 µA High Noise Immunity Characteristic of CMOS Devices ORDERING INFORMATION KK74H.

KK74HC11A_KODENSHIKOREA.pdf

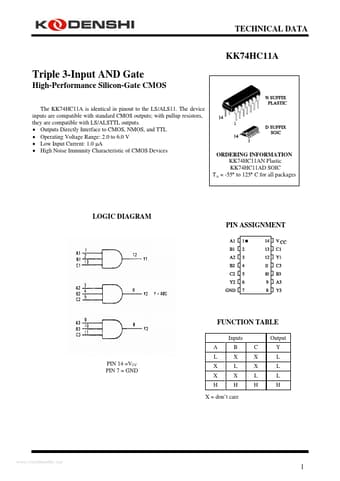

Preview of KK74HC11A PDF
KK74HC11A Datasheet Preview Page 2 KK74HC11A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HC11A

Manufacturer:

KODENSHI KOREA

File Size:

300.59 KB

Description:

Triple 3-input and gate.
