KK74HC123A - Dual Retriggerable Monostable Multivibrator

TECHNICAL DATA KK74HC123A Dual Retriggerable Monostable Multivibrator The KK74HC123A is identical in pinout to the LS/ALS123.

The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LS/ALSTTL outputs.

There are two trigger inputs, A INPUT (negative edge) and B INPUT (positive edge).

These inputs are valid for rising/falling signals.

The device may also be triggered by using the CLR input (positiveedge) because of the Schmitt-trigger input; a

KK74HC123A_KODENSHIKOREA.pdf

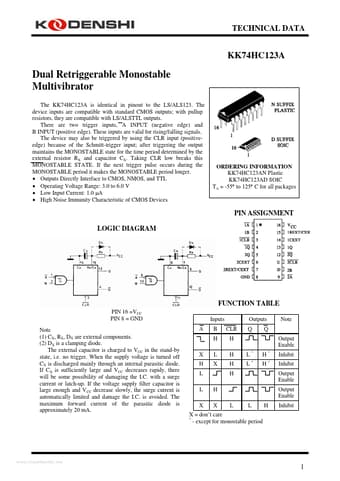

Preview of KK74HC123A PDF
