KK74HCT125A Datasheet - KODENSHI KOREA

KK74HCT125A Quad 3-State Noninverting Buffers

TECHNICAL DATA KK74HCT125A Quad 3-State Noninverting Buffers High-Performance Silicon-Gate CMOS The KK74HCT125A is identical in pinout to the LS/ALS125. The KK74HCT125A may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The KK74HCT125A noninverting buffers are designed to be used with 3-state memory address drivers, clock drivers, and other bus-oriented systems. The devices have four separate output enables that are active-low. TTL/NMOS Co.

KK74HCT125A_KODENSHIKOREA.pdf

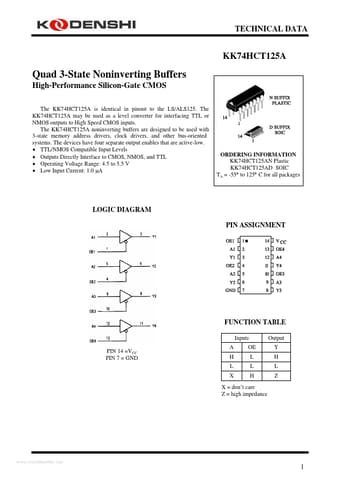

Preview of KK74HCT125A PDF
KK74HCT125A Datasheet Preview Page 2 KK74HCT125A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HCT125A

Manufacturer:

KODENSHI KOREA

File Size:

331.89 KB

Description:

Quad 3-state noninverting buffers.
