KK74HCT138A

1-of-8 Decoder/Demultiplexer

KK74HCT138A Features

* three Chip Select inputs, two active-low and one active-high to facilitate the demultiplexing, cascading, and chip-selecting functions. The demultiplexing function is accomplished by using the Address inputs to select the desired device output; one of the Chip Selects is used as a data input while t

KK74HCT138A Datasheet (335.23 KB)

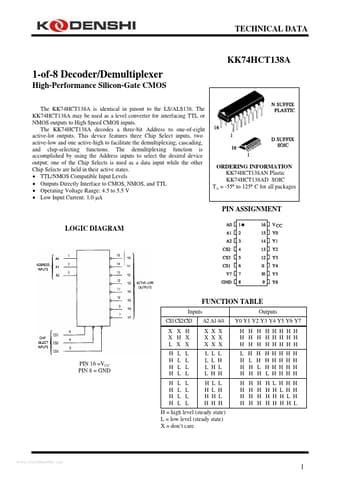

Preview of KK74HCT138A PDF

Datasheet Details

Part number:

KK74HCT138A

Manufacturer:

KODENSHI KOREA

File Size:

335.23 KB

Description:

1-of-8 decoder/demultiplexer.
TECHNICAL DATA KK74HCT138A 1-of-8 Decoder/Demultiplexer High-Performance Silicon-Gate CMOS The KK74HCT138A is identical in pinout to the LS/ALS138. .
