KK74HCT126A Datasheet - KODENSHI KOREA

KK74HCT126A Quad 3-State Noninverting Buffers

TECHNICAL DATA KK74HCT126A Quad 3-State Noninverting Buffers High-Performance Silicon-Gate CMOS The KK74HCT126A is identical in pinout to the LS/ALS126. The KK74HCT126A may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs. The KK74HCT126A noninverting buffers are designed to be used with 3-state memory address drivers, clock drivers, and other bus-oriented systems. The devices have four separate output enables that are activehigh. TTL/NMOS Co.

KK74HCT126A_KODENSHIKOREA.pdf

Preview of KK74HCT126A PDF

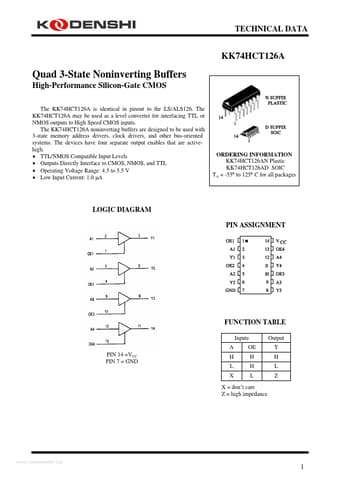

KK74HCT126A Datasheet Preview Page 2 KK74HCT126A Datasheet Preview Page 3

Datasheet Details

Part number:

KK74HCT126A

Manufacturer:

KODENSHI KOREA

File Size:

333.30 KB

Description:

Quad 3-state noninverting buffers.
