KKA7053N - 2 x 1 W portable/mains-fed stereo power amplifier

signal ground 1 input 1 not connected not connected supply voltage input 2 signal ground 2 not connected Pin № 09 10 11 12 13 14 15 16 Symbol OUT2A GND2 n.c.

OUT2B OUT1B GND1 n.c.

OUT1A Description output 2 (positive) power ground 2 not connected output 2 (negative) output 1 (negative) power ground

www.DataSheet4U.com TECHNICAL DATA 2 x 1 W portable/mains-fed stereo power amplifier The KKA7053N is an integrated class-B stereo power amplifier in a 16-lead dual-in-line (DIL) plastic package.

The device, consisting of two BTL amplifiers, is primarily developed for portable audio applications but may also be used in mains-fed applications.

No external components No switch-ON/OFF clicks Good overall stability Low power consumption Short-circui

KKA7053N_KODENSHIKOREA.pdf

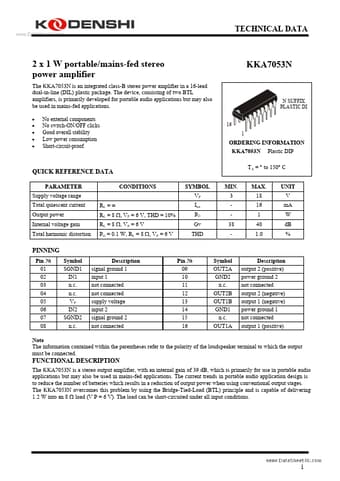

Preview of KKA7053N PDF
