KKA7056B

5W MONO BTL AUDIO AMPLIFIER

KODENSHI KOREA

KKA7056B Features

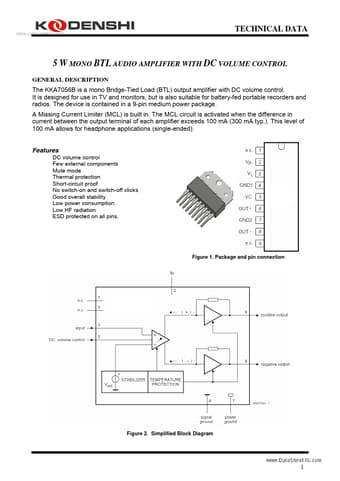

* 　　　　　　　　　　 DC volume control Few external components Mute mode Thermal protection Short-circuit proof No switch-on and switch-off clicks Good overall stability Low power consumption Low HF radiation ESD protected on all pins. Figure 1. Package and pin connection Figure 2. Simplified Block

KKA7056B General Description

The KKA7056B is a mono Bridge-Tied Load (BTL) output amplifier with DC volume control. It is designed for use in TV and monitors, but is also suitable for battery-fed portable recorders and radios. The device is contained in a 9-pin medium power package. A Missing Current Limiter (MCL) is built in. .

KKA7056B Datasheet (397.63 KB)

KKA7056B Datasheet Preview — Preview of KKA7056B PDF

Datasheet Details

Part number:

KKA7056B

Manufacturer:

KODENSHI KOREA

File Size:

397.63 KB

Description:

5w mono btl audio amplifier.
