KKA7056 Datasheet, Amplifier, KODENSHI KOREA

KKA7056 Features

  • Amplifier
  • No external components
  • No switch-on/off clicks
  • Good overall stability
  • Low power consumption
  • Short circuit proof
  • ESD protected

PDF File Details

Part number:

KKA7056

Manufacturer:

KODENSHI KOREA

File Size:

240.07kb

Download:

📄 Datasheet

Description:

3w mono btl audio output amplifier. The KKA7056SH is a mono output amplifier contained in a 9 pin SIL medium power package (SOT110). The device is designed for battery-f

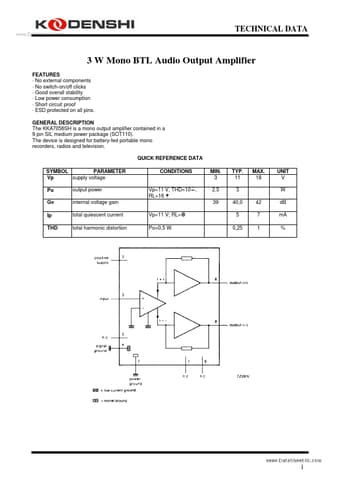

Datasheet Preview: KKA7056 📥 Download PDF (240.07kb)
Page 2 of KKA7056 Page 3 of KKA7056

KKA7056 Application

  • Applications there is also a trend to decrease the number of battery cells, but still a reasonable output power is required. The KKA7056SH fulfills
