S37704P, S37701 8CH Darlington TR Sink Driver

S37704P Description

Semiconductor http:// www.auk.co.kr SOP-20 S3770x/P 8CH Darlington TR Sink Driver .
The S3770x Series are high-voltage, high-current Darlington transistor arrays.

S37704P Features

* ◈ Output Current (single output) 500mA(Max. ) ◈ High sustaining voltage output ◈Output clamp diode ◈ Inputs compatible with various types of logic ◈ Package : SOP-20, DIP-18 ▲ Marking Detail

S37704P Applications

* include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. DIP-18 ORDERING INFORMATION Product S3770x S3770xP Marking S3770x S3770x Package SOP-20 DIP-18 Application ◈ Relay Controller ◈ Lamp and Display LED Driver ◈ Motor Dri

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S37704P, S37701. Please refer to the document for exact specifications by model.

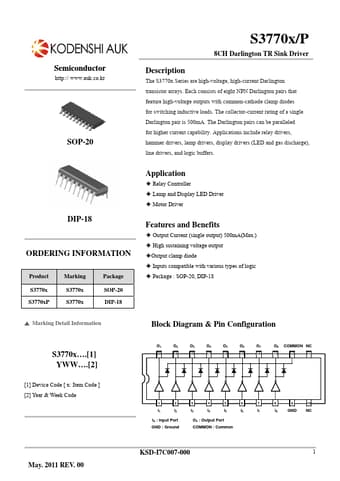

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S37704P, S37701
Manufacturer
KODENSHI KOREA
File Size
401.34 KB
Datasheet
S37701-KODENSHIKOREA.pdf
Description
8CH Darlington TR Sink Driver
Note
This datasheet PDF includes multiple part numbers: S37704P, S37701.
Please refer to the document for exact specifications by model.
