S3771 Datasheet, Driver, KODENSHI KOREA

S3771 Features

• Driver ◈ Output Current (single output) 500mA(Max.) ◈ High sustaining voltage output ◈Output clamp diode ◈ Inputs compatible with various types of logi

PDF File Details

Part number:

S3771

Manufacturer:

KODENSHI KOREA

File Size:

569.15kb

Download:

📄 Datasheet

Description:

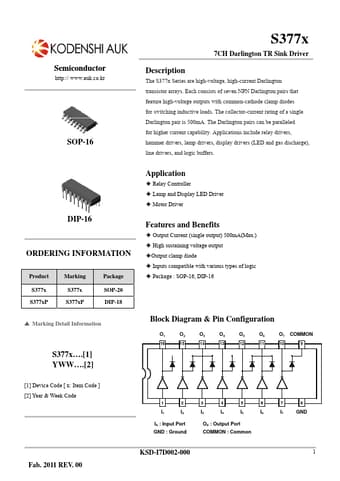

7ch darlington tr sink driver. The S377x Series are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that featur

S3771 Application

• Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. DIP-16
