S3772P, S3771 7CH Darlington TR Sink Driver

S3772P Description

Semiconductor http:// www.auk.co.kr SOP-16 S377x 7CH Darlington TR Sink Driver .
The S377x Series are high-voltage, high-current Darlington transistor arrays.

S3772P Features

* ◈ Output Current (single output) 500mA(Max. ) ◈ High sustaining voltage output ◈Output clamp diode ◈ Inputs compatible with various types of logi

S3772P Applications

* include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. DIP-16 ORDERING INFORMATION Product S377x S377xP Marking S377x S377xP Package SOP-20 DIP-18 ▲ Marking Detail Information S377x…. [1] YWW…. [2] Application ◈ Relay Cont

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S3772P, S3771. Please refer to the document for exact specifications by model.

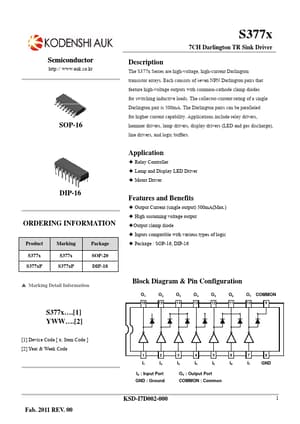

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3772P, S3771
Manufacturer
KODENSHI KOREA
File Size
569.15 KB
Datasheet
S3771-KODENSHIKOREA.pdf
Description
7CH Darlington TR Sink Driver
Note
This datasheet PDF includes multiple part numbers: S3772P, S3771.
Please refer to the document for exact specifications by model.
