PSR11EL6-D - PAPER SENSOR

PSR11EL6-D Description

PAPER SENSOR PSR11EL6-D PSR11EL6-D、80mm 、 。 PSR11EL6-D is a reflective photo IC sensor which has long detecting distance of 80mm, and also has capa.

PSR11EL6-D Features

* : 2mm~80mm Long detecting distance: 2mm~80mm
* : 0.5ms High speed responsibility: 0.5ms
* : L38.2mm×W9.6mm×H10mm Package size: L38.2mm×W9.6mm×H10mm
* Exterior light endure by phase-modulation
* For external light emission control
* Flat detecting surface for easy cleanin

PSR11EL6-D Applications

* 、 Copier, Printer MAXIMUM RATINGS (Ta=25℃) Item Symbol Rating Unit Supply voltage VCC -0.5~5.5 V ローレベル トランジスタ Output voltage Low level output current Power dissipation Operating temp. Storage temp.
* 1
* 2
* 1
* 2 VO IOL PO Topr. Tstg. -0.5~16 30 30 -10~+60 -20~+85 V

📥 Download Datasheet

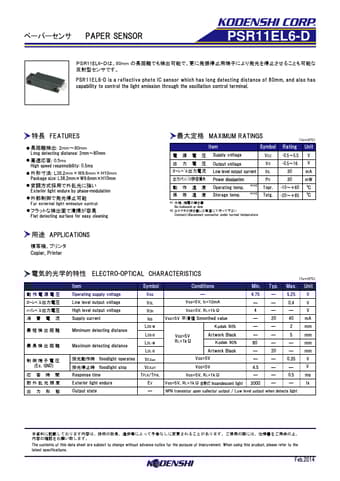

Preview of PSR11EL6-D PDF
datasheet Preview Page 2

Datasheet Details

Part number
PSR11EL6-D
Manufacturer
KODENSHI
File Size
138.26 KB
Datasheet
PSR11EL6-D-KODENSHI.pdf
Description
PAPER SENSOR
