PSR11TD1 PAPER SENSOR

PAPER SENSOR PSR11T 1/D5 PSR11TD1/PSR11TL1/PSR11TD5 PSR11T 1/PSR11TD5、ＩＣ、ＩＣ、ＩＣ。（ＩＣ、、、、。) ＰＳR11T １/ＰＳR11TD5 are reflective photo IC sensor for long distance detection, high temperature, composed of a modulated infrared emitting diode as an emitter and a modulated infrared photo IC as a detector. ("Photo IC" is used as a generic name of elements that are accumulating optical elements such as photodiode, infrared emitting diode, and integrated circuits such as signal processing.

PSR11TD1 Features

* : 2mm～30mm Long detecting distance: 2mm～30mm

* : 0.5ms High speed responsibility: 0.5ms

* ：L40mm×W9.6mm×H10mm Package size: L40mm×W9.6mm×H10mm

* Exterior light endure by phase-modulation

* : 85℃ For high operating temperature: 85℃

* Flat detecting surface for easy cleanin

PSR11TD1-KODENSHI.pdf

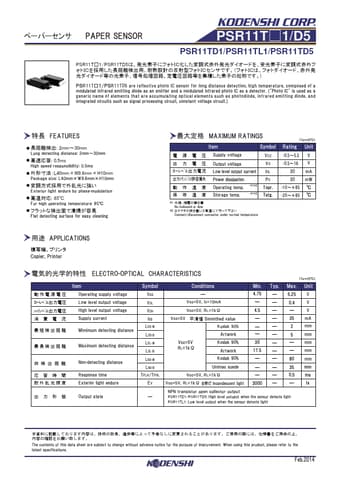

PSR11TD1 Datasheet Preview — Preview of PSR11TD1 PDF

Datasheet Details

Part number:

PSR11TD1

Manufacturer:

KODENSHI

File Size:

455.88 KB

Description:

Paper sensor.
