PSR11GD6-F PAPER SENSOR

PSR11GD6-F Description

PAPER SENSOR PSR11GD6-F PSR11GD6-F 、3.3V 、。 PSR11GD6-F is a reflective photo IC sensor which is compliant with operating voltage 3.3V and high oper.

PSR11GD6-F Features

* : 2mm～45mm Long detecting distance: 2mm～45mm
* : 0.5ms High speed responsibility: 0.5ms
* ：L38.2mm×W9.6mm×H10mm Package size: L38.2mm×W9.6mm×H10mm
* Exterior light endure by phase-modulation
* /: 3.3V/85℃ For low voltage，high temperature: 3.3V/85℃
* For external light emission

PSR11GD6-F Applications

* 、 Copier, Printer MAXIMUM RATINGS Item Symbol Supply voltage Vcc Output voltage VO ﾛｰﾚﾍﾞﾙ Low level output current IOL Operating temp.
* 1
* 2 Topr. Storage temp.
* 1
* 2 Tstg.
* 1 、 No icebound or dew
* 2 Connect/disconnect connector under normal tempe

📥 Download Datasheet

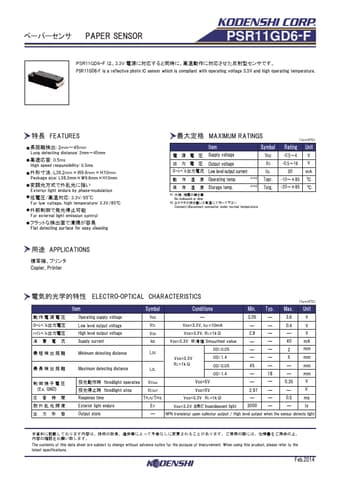

Preview of PSR11GD6-F PDF
datasheet Preview Page 2

Datasheet Details

Part number
PSR11GD6-F
Manufacturer
KODENSHI
File Size
152.11 KB
Datasheet
PSR11GD6-F-KODENSHI.pdf
Description
PAPER SENSOR
