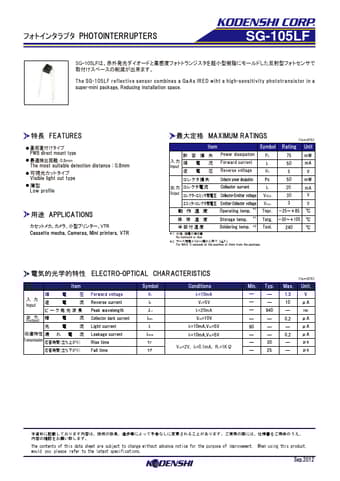

PHOTOINTERRUPTERS
SG-105LF
SG-105LF、 。
The SG-105LF reflective sensor combines a GaAs IRED wiht a high-sensitivity phototransistor in a super-mini package, Reducing installation space.
FEATURES
● PWB direct mount type
● ：0.8mm The most suitable detection distance : 0.8mm
● Visible light cut type
● Low profile
APPLICATIONS
、、、VTR Cassette mecha, Cameras, Mini printers, VTR
MAXIMUM RATINGS
（Ta＝25℃）
Item Symbol Rating Unit
Input
Power dissipation Forward current Reverse voltage
PD IF VR
75 mW 50 mA 5V
Collector power dissipation Pc
50 mW
Collector current
IC
Output - Collector-Emitter voltage VCEO
20 mA 30 V
- Emitter-Collector voltage VECO 3 V
Operating temp. *1 Topr. －25～＋85 ℃
Storage temp. *1 Tstg. －30～＋100 ℃
Soldering temp. *2 Tsol.
