SG-107 - Photointerrupter

Datasheet Summary

Features

  • ¶U Compact ¶UHigh performance ¶UHigh-speed response ¶UEasy to mount on P. C. B. ¶UWidely applicable.

📥 Download Datasheet

Datasheet preview – SG-107

Datasheet Details

Part number SG-107
Manufacturer KODENSHI KOREA CORP
File Size 279.48 KB
Description Photointerrupter
Datasheet download datasheet SG-107 Datasheet
Additional preview pages of the SG-107 datasheet.

📁 Similar Datasheet

  • SG-107LF - PHOTOINTERRUPTERS (KODENSHI)
  • SG-10 - SIP LOW/MEDIUM-FREQUENCY CRYSTAL OSCILLATOR (Epson Company)
  • SG-105LF - PHOTOINTERRUPTERS (KODENSHI)
  • SG-10LLR - Rectifier Diode (Sanken electric)
  • SG-10LLS - Rectifier Diode (Sanken electric)
  • SG-10LLXR - Rectifier Diode (Sanken electric)
  • SG-10LLXS - Rectifier Diode (Sanken electric)
  • SG-10LLZ23R - Rectifier Diode (Sanken electric)
  • SG-10LLZ23S - Rectifier Diode (Sanken electric)
  • SG-10LR - Rectifier Diode (Sanken electric)
Other Datasheets by KODENSHI KOREA CORP

Full PDF Text Transcription

Click to expand full text

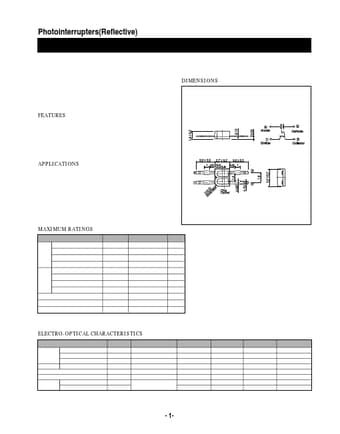

Photointerrupters(Reflective) SG-107 DIMENSIONS The SG-107 reflective sensor combines a GaAs IRED with a high-sensitivity phototransistor in a super-mini package, reducing installation space. (Unit : mm) FEATURES ¶U Compact ¶UHigh performance ¶UHigh-speed response ¶UEasy to mount on P.C.B. ¶UWidely applicable APPLICATIONS ¶UTiming sensors ¶UEdge sensors ¶UMicro floppy disk drives ¶ULevel sensors of liquid MAXIMUM RATINGS Item Power dissipation Reverse voltage Input Forward current *1 Pulse forward current Collector power dissipation Collector current Output C-E voltage E-C voltage Operating temp. Storage temp. *2 Soldering temp. (Ta=2° 5…) Symbol PD VR F I FP I Pc C I VCEO VECO Topr. Tstg. Tsol.
