SG-107LF - PHOTOINTERRUPTERS

SG-107LF Description

PHOTOINTERRUPTERS SG-107LF SG-107LF、 。 The SG-107LF reflective sensor combines a GaAs IRED wiht a high-sensitivity phototransistor in a super-mini .

SG-107LF Features

* PWB direct mount type
* ：0.8mm The most suitable detection distance : 0.8mm
* Visible light cut type

SG-107LF Applications

* 、、、VTR Cassette mecha, Cameras, Mini printers, VTR MAXIMUM RATINGS （Ta＝25℃） Item Symbol Rating Unit Input Power dissipation Forward current Reverse voltage PD IF VR 75 mW 50 mA 5V Collector power dissipation Pc 50 mW Collector current IC Output - Collector-Emitter vo

📥 Download Datasheet

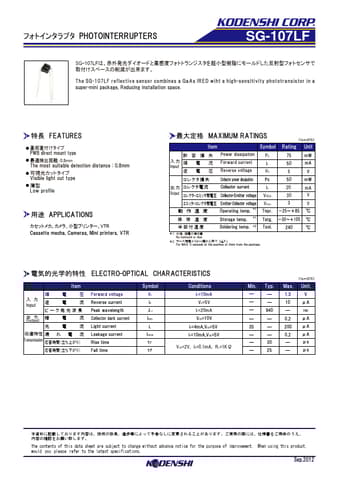

Preview of SG-107LF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SG-107LF
Manufacturer
KODENSHI
File Size
143.27 KB
Datasheet
SG-107LF-KODENSHI.pdf
Description
PHOTOINTERRUPTERS
