KSV10WA Datasheet - KOGE

KSV10WA Solenoid Valve

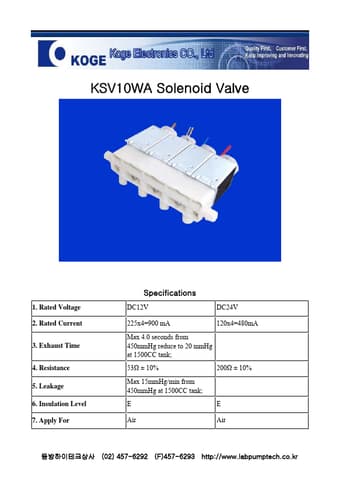

KSV10WA Solenoid Valve 1. Rated Voltage 2. Rated Current 3. Exhaust Time 4. Resistance 5. Leakage 6. Insulation Level 7. Apply For Specifications DC12V DC24V 225x4=900 mA 120x4=480mA Max 4.0 seconds from 450mmHg reduce to 20 mmHg 　 at 1500CC tank; 53Ω ± 10% 200Ω ± 10% Max 15mmHg/min from 450mmHg at 1500CC tank; 　 EE Air Air 동방하이테크상사 (02) 457-6292 (F)457-6293 http://www.labpumptech.co.kr PHYSICAL DIMENSION 동방하이테크상사 (02) 457-6292 (F)457-6293 http://www.labpumptech.co.kr .

KSV10WA Datasheet (231.60 KB)

KSV10WA Datasheet Preview — Preview of KSV10WA PDF

Datasheet Details

Part number:

KSV10WA

Manufacturer:

KOGE

File Size:

231.60 KB

Description:

Solenoid valve.
