KSV1406 Silicon Hyperabrupt Tuning Varactors

The KSV14xx series of hyperabrupt tuning varactor diodes offer high Qs. These diodes are excellent for octave tuning up to 800 MHz and for straight-line frequency tuning between 3 and 8 Volt of bias. They achieve high Q values when tuned between 9 and 20 volts. Rev. V1 Glass Axial Leaded Electrica.

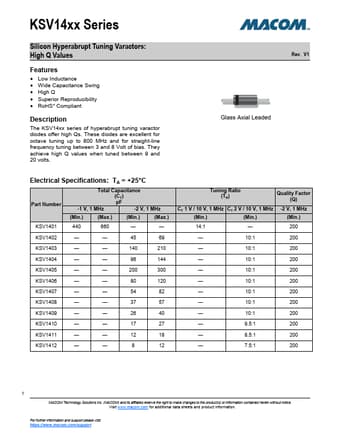

KSV1401-MA-COM.pdf

KSV1406 Datasheet Preview — This datasheet PDF includes multiple part numbers: KSV1406, KSV1401-MA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KSV1406, KSV1401-MA

Manufacturer:

MA-COM

File Size:

374.46 KB

Description:

Silicon hyperabrupt tuning varactors.

Note:

This datasheet PDF includes multiple part numbers: KSV1406, KSV1401-MA.
Please refer to the document for exact specifications by model.
