KSV1403 Silicon Hyperabrupt Tuning Varactors

The KSV14xx series of hyperabrupt tuning varactor diodes offer high Qs. These diodes are excellent for octave tuning up to 800 MHz and for straight-line frequency tuning between 3 and 8 Volt of bias. They achieve high Q values when tuned between 9 and 20 volts. Rev. V1 Glass Axial Leaded Electrica.

KSV1403 Datasheet (374.46 KB)

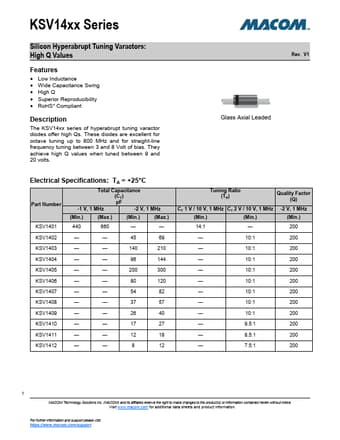

KSV1403 Datasheet Preview — Preview of KSV1403 PDF

Datasheet Details

Part number:

KSV1403

Manufacturer:

MA-COM

File Size:

374.46 KB

Description:

Silicon hyperabrupt tuning varactors.
