2SC1815 - NPN Transistors

Kexin

📥 Download Datasheet

2SC1815 Datasheet Preview — Preview of 2SC1815 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SC1815
Manufacturer	Kexin
File Size	945.71 KB
Description	NPN Transistors
Datasheet	2SC1815-Kexin.pdf

2SC1815 Product details

Features

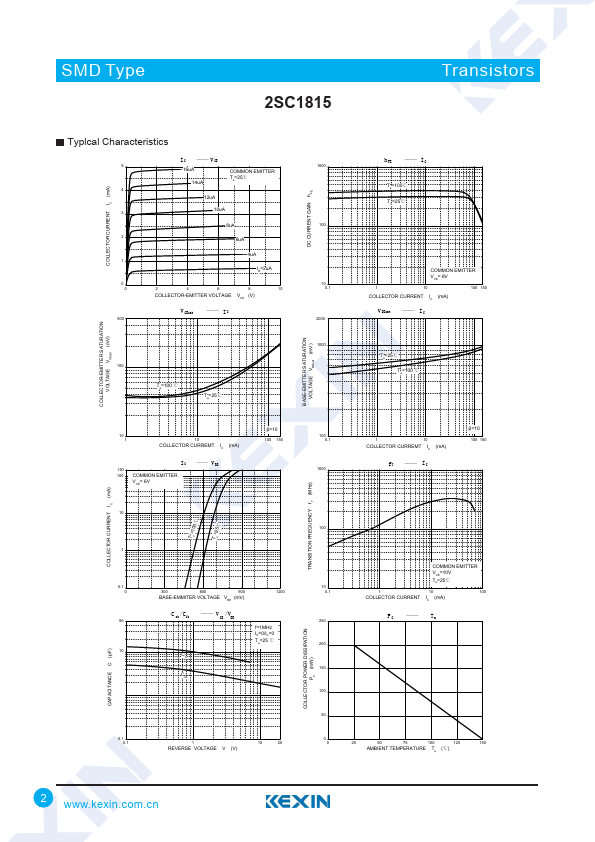

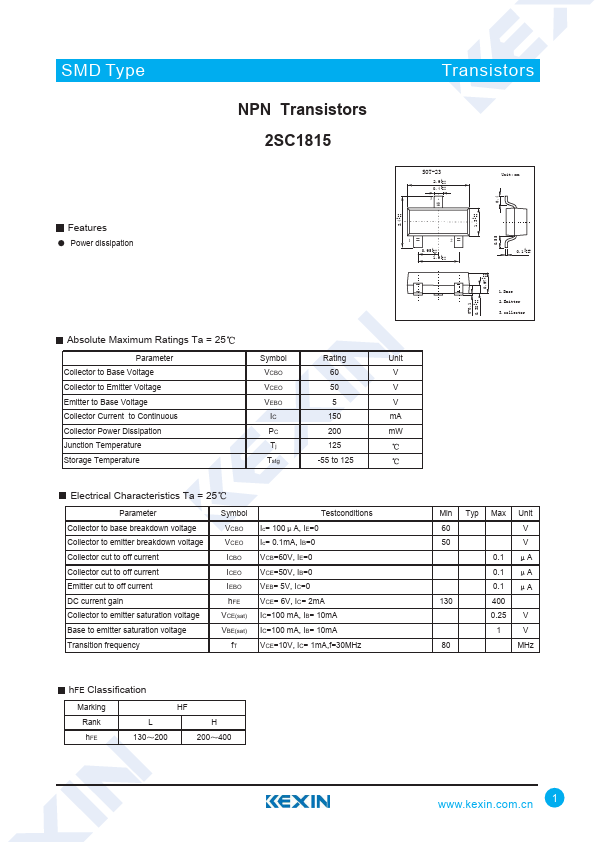

Power dissipation NPN Transistors 2SC1815 +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current to Continuous Collector Power Dissipation Junction Temperature Storage Temperature Symbol Rating Unit VCBO 60 V VCEO 50 V VEBO 5 V IC 150 mA P.
