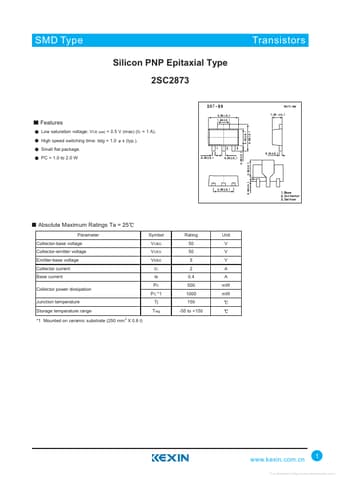

2SC2873 - Silicon PNP Transistor

Kexin

Datasheet Details

Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A). High speed switching time: tstg = 1.0 Small flat package. PC = 1.0 to 2.0 W s (typ. ). Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range.
1 Mounted on ceramic substrate (250 mm2 X 0.8 t) Symbol VCBO VCEO VEBO IC IB PC PC.
1 Tj Tstg Rating 50 50 5 2 0.4 500 1000 1.
