2SC4209 - Silicon NPN Epitaxial Type Transistor

Product Overview

Kexin

Part number	2SC4209
Manufacturer	Kexin
File Size	52.88 KB
Description	Silicon NPN Epitaxial Type Transistor
Datasheet	2SC4209 Datasheet

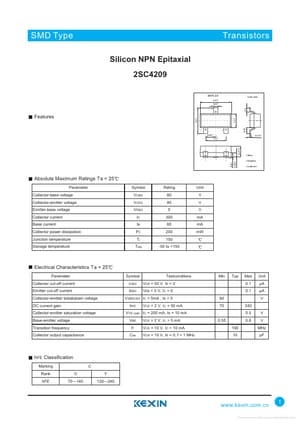

Additional preview pages of the 2SC4209 datasheet.

1 +0.1 0.95-0.1 +0.1 1.9-0.1 2 0.55 0.4 3 +0.05 0.1-0.01 +0.1 0.97-0.1 1.Base 2.Emitter 3.collector Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 80 80 5 300 60 200 150 -55 to +150 Unit V V V mA mA mW Electrical Characteristics Ta = 25 Parameter Collector cut-off current Emitt.
