2SC4684

Silicon NPN Transistor

2SC4684 Features

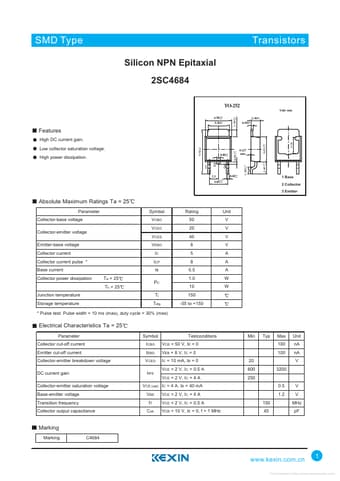

* High DC current gain. +0.2 9.70 -0.2 Low collector saturation voltage. High power dissipation. +0.1 0.80-0.1 +0.15 0.50 -0.15 0.127 max 2.3 +0.15 4.60-0.15 +0.1 0.60-0.1 +0.28 1.50 -0.1 +0.25 2.65 -0.1 +0.15 5.55 -0.15 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Paramete

2SC4684 Datasheet (57.05 KB)

Preview of 2SC4684 PDF

Datasheet Details

Part number:

2SC4684

Manufacturer:

Kexin

File Size:

57.05 KB

Description:

Silicon npn transistor.
SMD Type Silicon NPN Epitaxial 2SC4684 TO-252 +0.15 1.50 -0.15 Transistors Unit: mm 2.30 +0.8 0.50-0.7 +0.1 -0.1 6.50 +0.2 5.30-0.2 +0.15 -0.15 F.
