2SD1005 - NPN Silicon Epitaxial Transistor

2SD1005 Description

SMD Type NPN Silicon Epitaxia 2SD1005 Transistors .

2SD1005 Features

* World standard miniature package: SOT-89. High collector to base voltage: VCBO 100V. Excellent dc current gain linearity: hFE=80TYP. (VCE=2V, IC=500mA). Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector curr

📥 Download Datasheet

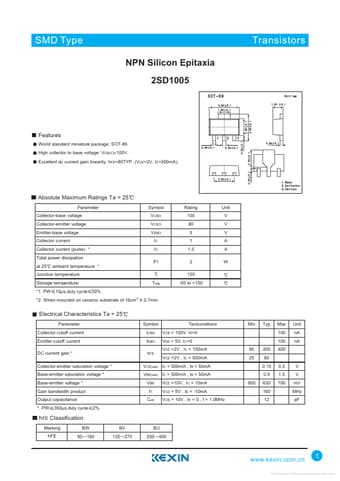

Preview of 2SD1005 PDF

Datasheet Details

Part number
2SD1005
Manufacturer
Kexin
File Size
69.36 KB
Datasheet
2SD1005_Kexin.pdf
Description
NPN Silicon Epitaxial Transistor
