2SD1005-W

NPN Silicon Power Transistors

2SD1005-W Features

* Halogen free available upon request by adding suffix "-HF"

* Excellent DC Current Gain Linearity

* High Breakdown Voltage

* Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information)

* Epoxy meets UL 94 V-0 flammability

2SD1005-W Datasheet (220.27 KB)

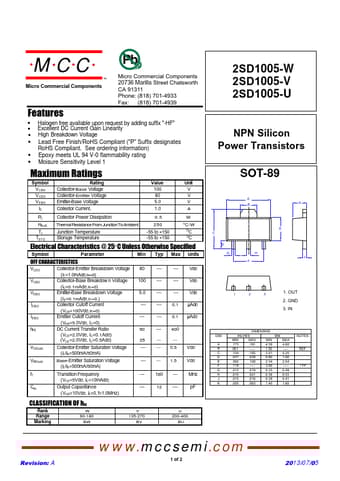

Preview of 2SD1005-W PDF

Datasheet Details

Part number:

2SD1005-W

Manufacturer:

MCC

File Size:

220.27 KB

Description:

Npn silicon power transistors.
MCC TM Micro Commercial Components    omponents 20736 Marilla Street Chatsworth    !"# $ %    !"#.
