S3KBF - Rectifier Diodes

📥 Download Datasheet

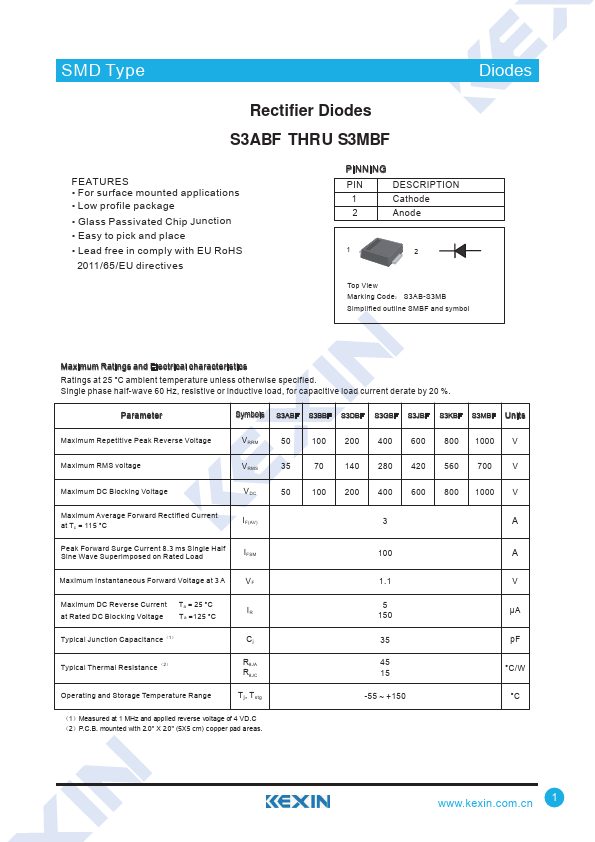

Preview of S3KBF PDF

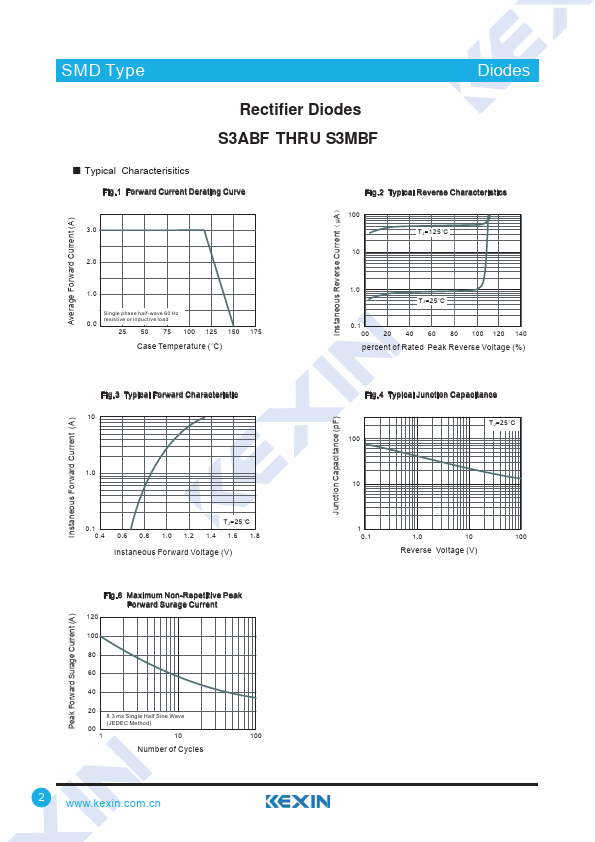

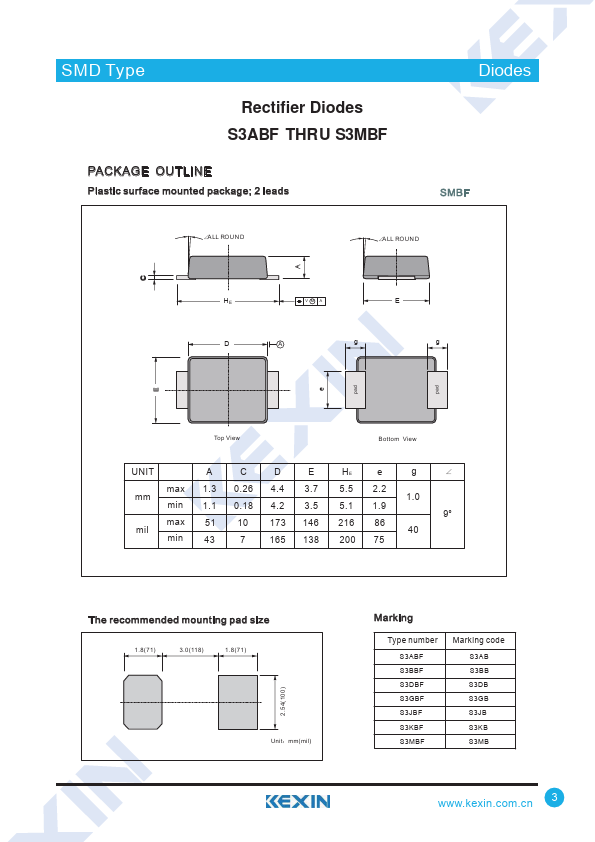

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3KBF
Manufacturer
Kexin
File Size
198.70 KB
Datasheet
S3KBF-Kexin.pdf
Description
Rectifier Diodes

S3KBF Product details

Description

1 Cathode 2 Anode 1 2 Top View Marking Code˖ S3AB-S3MB Simplified outline SMBF and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols S3ABF S3BBF S3DBF S3GBF S3JBF S3KBF S3MBF Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140.
