SC08-11EWA Datasheet - Kingbright Electronic

SC08-11EWA 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY

The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifi.

SC08-11EWA Features

* z 0.8 inch digit height. z Low current operation. z Excellent character appearance. z Easy mounting on P.C. boards or sockets. z Categorized for luminous intensity. z Mechanically rugged. z Standard : gray face, white segment. z RoHS compliant. 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY Part N

SC08-11EWA-KingbrightElectronic.pdf

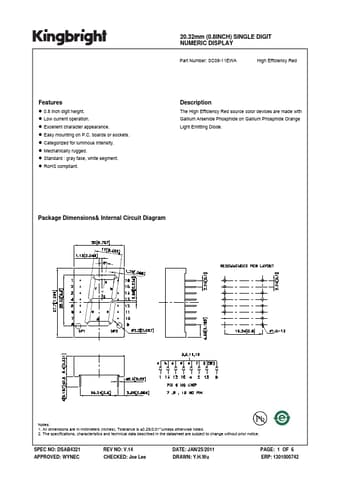

Preview of SC08-11EWA PDF
SC08-11EWA Datasheet Preview Page 2 SC08-11EWA Datasheet Preview Page 3

Datasheet Details

Part number:

SC08-11EWA

Manufacturer:

Kingbright Electronic

File Size:

207.33 KB

Description:

20.32mm (0.8inch) single digit numeric display.
