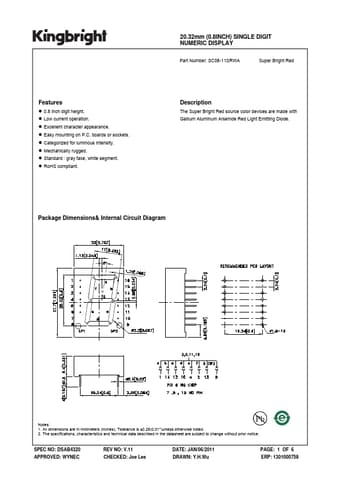

SC08-11SRWA 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY

The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. The specifications, characteristics and.

SC08-11SRWA Features

* z 0.8 inch digit height. z Low current operation. z Excellent character appearance. z Easy mounting on P.C. boards or sockets. z Categorized for luminous intensity. z Mechanically rugged. z Standard : gray face, white segment. z RoHS compliant. 20.32mm (0.8INCH) SINGLE DIGIT NUMERIC DISPLAY Part N
