SC39-11EWA Datasheet, Display, Kingbright

SC39-11EWA Features

  • Display 0.39 inch digit height Low current operation Excellent character appearance Easy mounting on P.C. boards or sockets Mechanically rugged Standard: gray face, white segment RoHS compliant

PDF File Details

Part number:

SC39-11EWA

Manufacturer:

Kingbright

File Size:

515.31kb

Download:

📄 Datasheet

Description:

Single digit numeric display. The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diod

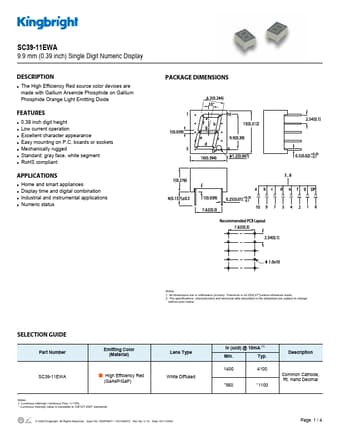

Datasheet Preview: SC39-11EWA 📥 Download PDF (515.31kb)
Page 2 of SC39-11EWA Page 3 of SC39-11EWA

SC39-11EWA Application

  • Applications Home and smart appliances Display time and digital combination Industrial and instrumental applications Numeric status PACKAGE DIMENSI
